Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: SANYUAN
  • Model Number: 1 x three-hole type feeder clamp
  • Type: Wire Rope Clip
  • Material: Stainless Steel
  • Name: Two Hole Type Feeder Clamp For 7/8"
  • material: Stainless Steel
  • Standard or Nonstandard: Standard

Packaging & Delivery

Packaging Details feeder clamp
standard export packing
Delivery Time Shipped in 3 days after payment

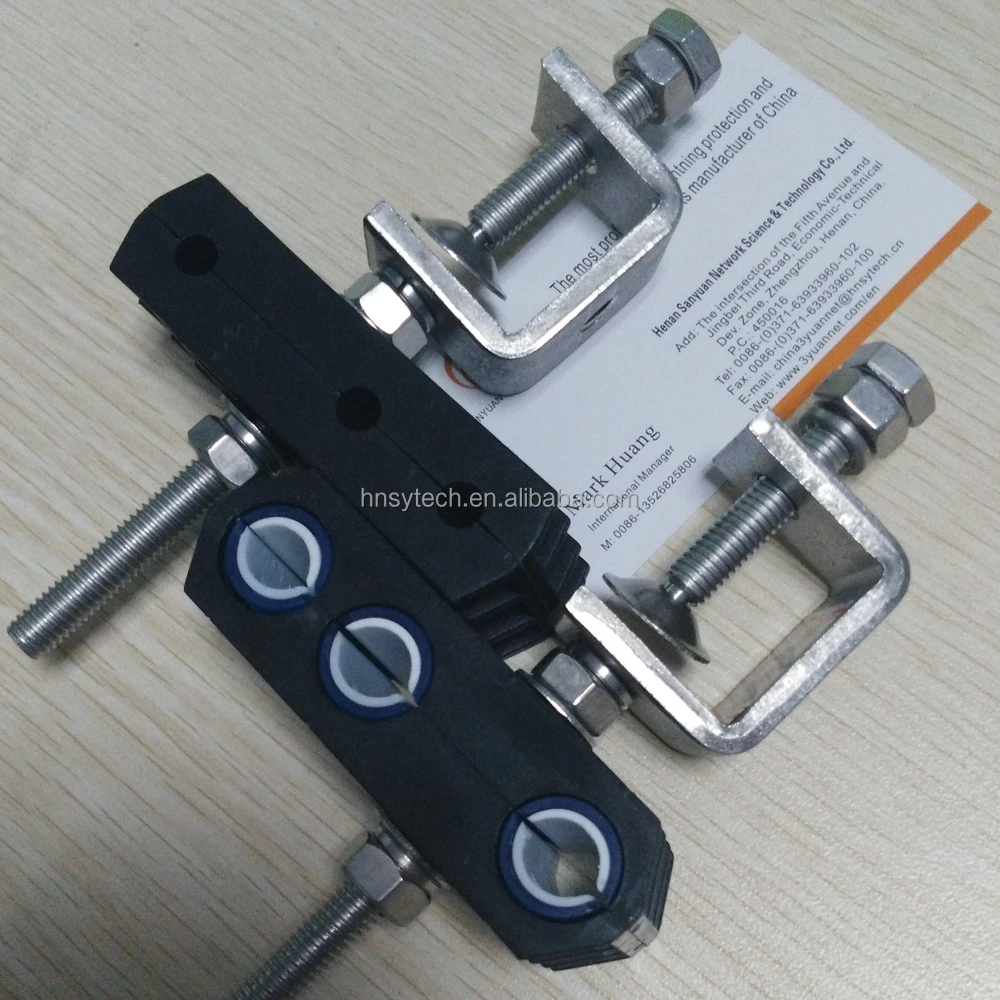

Without inner rubber 1x three-hole type feeder clamp / 3~5mm Dia. hole optical fiber feeder clamp:


Feeder Clamp - Product information:
The Hanger is mainly used for the fixation between RF cable and tower, cable ladder etc, which is mainly composed of stainless steel and anti-ultraviolet polypropylene or ABS engineering plastics and anti-old rubber, and can be used in different range of temperatures. Feeder clamp (stainless steel material) is widely used in different areas' feeder cable installation & fixation.
SANYUAN COMPANY SS304 feeder clamps are manufactured with high quality 304 stainless steel and modified Polypropylene, with high anti-rust ability & was used for many cables instllation which include Commscope / Andrew (HELIAX, RADIAX, ), RFS (CELLFLEX), Leoni (FlexLine), Acome, LS cable (LHF, HFC, HFAC, HFSC series), Draka (NK cable)...

Feeder clamp - Basic Parts:

1, Anger adapter

2, Teeth bar

3, Sheet steel

4, Plastic card

5, Spring washers

6, Flat washer

7, Screw cap


Feeder Clamps - Application:

1, For fiber and power cables

2, For installation of multiple cable runs on towers such as following different cables:

    a, Telecom cable

    b, Fiber cable

    c,Coaxial cable

    d, Feeder cable

    e, Hybrid cable

    f, Corrugated cable

    g, Smooth cable

    h, Braid cable



Feeder cable clamp - types:
1, 1/2"x1 Single-hole type, 1/2"x2 Single-hole type, 1/2"x3 Single-hole type, etc..
    1/2"x1 Double-hole type, 1/2"x2 Double-hole type, 1/2"x3 Double-hole type, etc..
2, 7/8"x1 Single-hole type, 7/8"x2 Single-hole type, 7/8"x3 Single-hole type, etc..
    7/8"x1 Double-hole type, 7/8"x2 Double-hole type, 7/8"x3 Double-hole type, etc..
3, 1-1/4"x1 Single-hole type, 1-1/4"x2 Single-hole type, 1-1/4"x3 Single-hole type, etc..
    1-1/4"x1 Double-hole type, 1-1/4"x2 Double-hole type, 1-1/4"x3 Double-hole type, etc..
4, 1-5/8"x1 Single-hole type, 1-5/8"x2 Single-hole type1-5/8"x3 Single-hole type, 1-5/8"x3 Two-hole type, etc..
    1-5/8"x1 Double-hole type, 1-5/8"x2 Double-hole type, 1-5/8"x3 Double-hole type, etc..

Feeder Cable Clamp --- Data Sheet

Item Name:




Application Size

5~8mm Optical Fiber Cable + 9~13mm Coaxial Cable

Clamp Stack:

 Single Stack (2 ways)

Double Stack (4 ways)

Triple Stack (6 ways)

Fourfold (8 ways)

Plastic Material:

 Polypropylene (PP)

Material of Clamp Inner:

Soft Rubber

 Metal Material:

 304 Stainless Steel

Material of “U” clamp & Thread Rod

304SS M8 Thread Rod

Match Cable:

 1/4’’, 1/2", 7/8", 1-1/4", 1-5/8" Feeder clamp

Match Cable:

 RG8, RG213, LMR400 etc. Coaxial Cable

Quality warranty:

Anti-rust and heat cold resistant for Indoor/Outdoor Use.

Working temperature:

-50°C- +70°C


Poly bag/set, carton,

Payment term

T/T, L/C, Western union


Installation Diagram
